Part4 Backpropagation

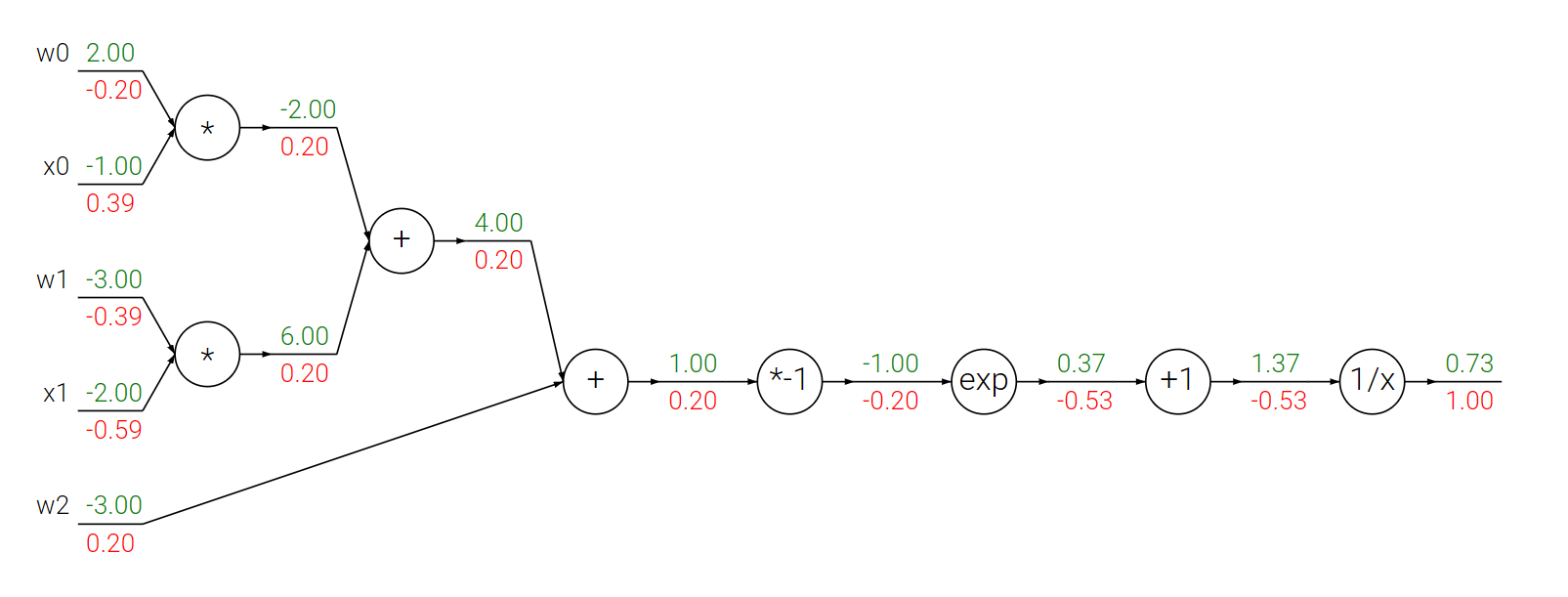

A way of computing gradients of expressions through recursive application of chain rule in the computational graph.
Practice: Staged Computation
$$f(x,y)=\frac{x+\sigma(y)}{\sigma(x)+(x+y)^2}$$
$$\sigma(x)=\frac{1}{1+e^{-x}}$$
Stage1: Forward Pass
| sigy = 1.0 / (1 + math.exp(-y)) # sigmoid in numerator #(1)
num = x + sigy # numerator #(2)
sigx = 1.0 / (1 + math.exp(-x)) # sigmoid in denominator #(3)
xpy = x + y #(4)
xpysqr = xpy**2 #(5)
den = sigx + xpysqr # denominator #(6)
invden = 1.0 / den #(7)
f = num * invden # done! #(8)
|
Stage2: Backward Pass
| dnum = invden # gradient on numerator #(8)
dinvden = num #(8)
# backprop invden = 1.0 / den
dden = (-1.0 / (den**2)) * dinvden #(7)
# backprop den = sigx + xpysqr
dsigx = (1) * dden #(6)
dxpysqr = (1) * dden #(6)
# backprop xpysqr = xpy**2
dxpy = (2 * xpy) * dxpysqr #(5)
# backprop xpy = x + y
dx = (1) * dxpy #(4)
dy = (1) * dxpy #(4)
# backprop sigx = 1.0 / (1 + math.exp(-x))
dx += ((1 - sigx) * sigx) * dsigx # Notice += !! See notes below #(3)
# backprop num = x + sigy
dx += (1) * dnum #(2)
dsigy = (1) * dnum #(2)
# backprop sigy = 1.0 / (1 + math.exp(-y))
dy += ((1 - sigy) * sigy) * dsigy #(1)
|
Note
Gradients add up at forks:
If a variable branches out to different parts of the circuit, then the gradients that flow back to it will add.
Gradients for Vectorized Operations
For matrix $W$, $X$, $D$, if
$$D=WX$$
then
$$dW=dD\cdot X^T$$
$$dX=W^T\cdot dD$$
