Chapter1 Fundamentals of Quantitative Design and Analysis

1.1 Classes of Computers

Classes by Flynn:

  • SISD: 单指令单数据流
  • SIMD: 单指令多数据流
  • MISD: 多指令单数据流
  • MIMD: 多指令多数据流

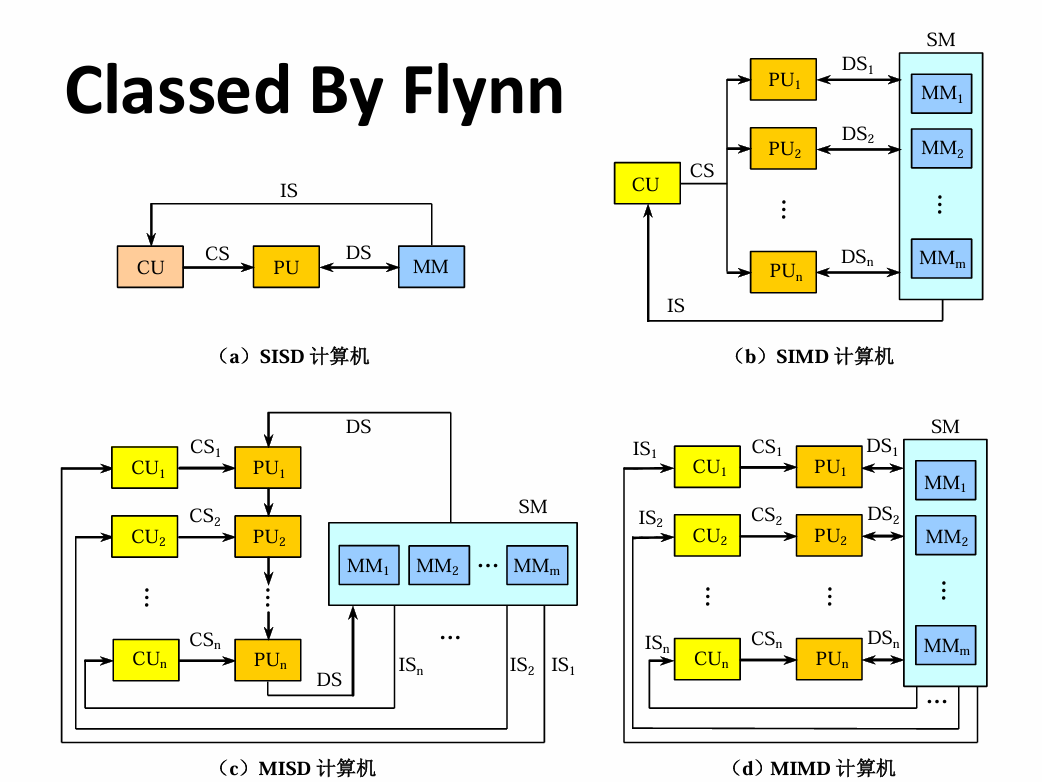

alt text

Classes by Textbook:

  • Desktop computers
    个人电脑，又称PC
  • Server computers
    服务器，存放大量数据，有专用的硬件和软件
  • Embedded computers
    嵌入式，如各种家用电器等
  • Personal mobile devices
    移动端，如手机、平板等
  • Supercomputers
    超算，如神威太湖之光，有很多的小节点，每个小节点都是一台计算机

Note

国外要求嵌入式不能装第三方应用，但国内可以。这就导致国内的embedded computers和personal mobile devices归为一类。

1.2 Performance

What Affects Performance:

  • Algorithm
  • Programming language, compiler, architecture
  • Processor and memory system
  • I/O system and OS

Measuring Performance:

For single users on a PC:

  • Minimization of response time
  • Minimization of execution time

For large data:

  • Maximization of throughput

Definition

Response time 响应时间：
又称Elapsed time，是从用户发出请求到系统做出响应的时间，包括处理I/O，调度等。
Execution time 执行时间：
又称CPU time，是CPU执行程序的时间，可分为User CPU time（在应用程序本身花的时间）和System CPU time（OS代表程序处理任务的时间）。

Performance:

$$\text{Performance}=\frac{1}{\text{Execution Time}}$$

If $x$ is $n$ times faster than $y$, then:

$$\frac{\text{Performance}_x}{\text{Performance}_y}=\frac{\text{Execution Time}_y}{\text{Execution Time}_x}=n$$

$$\text{Execution Time}=\text{CPU Clock Cycles}\times\text{Clock Time}=\frac{\text{CPU Clock Cycles}}{\text{Clock Rate}}$$

$$\text{CPI}=\frac{\text{CPU Clock Cycles}}{\text{IC}}$$

$$\text{Execution Time}=\frac{\text{IC}\times\text{CPI}}{\text{Clock Rate}}$$

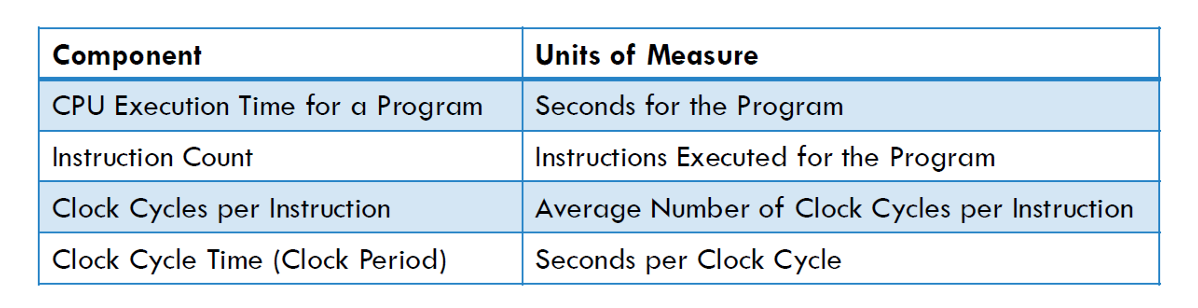

alt text

Example

Computer A: Cycle Time = 250ps, CPI = 2.0 Computer B: Cycle Time = 500ps, CPI = 1.2 Same ISA Which is faster, and by how much?

$\text{Execution Time}_A=\text{IC}\times\text{CPI}_A\times\text{Cycle Time}_A=1\times 2.0\times 250\text{ps}=500\text{ps}$ $\text{Execution Time}_B=\text{IC}\times\text{CPI}_B\times\text{Cycle Time}_B=1\times 1.2\times 500\text{ps}=600\text{ps}$ $\frac{\text{Performance}_A}{\text{Performance}_B}=\frac{600}{500}=1.2$

CPI in More Detail:

If different instruction classes take different numbers of cycles:

$$\text{Clock Cycles}=\sum_{i=1}^{n}\text{CPI}_i\times\text{IC}_i$$

Weighted average CPI:

$$\text{CPI}=\frac{\text{Clock Cycles}}{\text{IC}}=\sum_{i=1}^{n}(\text{CPI}_i\times\frac{\text{IC}_i}{\text{IC}})$$

Note

$\frac{\text{IC}_i}{\text{IC}}$称为Relative frequency。

Example

Class A B C
CPI for class 1 2 3
IC in sequence1 2 1 2
IC in sequence2 4 1 1

sequence1:
IC = 5
Clock Cycles = 2 × 1 + 1 × 2 + 2 × 3 = 10
Avg.CPI = 10/5 = 2.0

sequence2:
IC = 6
Clock Cycles = 4 × 1 + 1 × 2 + 1 × 3 = 9
Avg.CPI = 9/6 = 1.5

Performance Summary:

$$\text{Execution Time}=\frac{\text{Instructions}}{\text{Program}}\times\frac{\text{Clock Cycles}}{\text{Instruction}}\times\frac{\text{Seconds}}{\text{Clock Cycle}}$$

  • Algorithm:
    affects IC, CPI
  • Programming language:
    affects IC, CPI
  • Compiler:
    affects IC, CPI
  • ISA:
    affects IC, CPI, T

1.3 Amdahl's Law

$$\text{Improved Execution Time}=\frac{\text{Affected Execution Time}}{\text{Amount of Improvement}}+\text{Unaffected Execution Time}$$

$$T_{\text{improved}}=\frac{T_{\text{affected}}}{\text{improvement factor}}+T_{\text{unaffected}}$$

Example

Multiply accounts for 80s/100s. How much improvement in multiply performance to get 5× overall?

$\frac{100}{5}=\frac{80}{n}+20$, impossible

从中可见Amdahl's Law还可以评估优化是否可行。

Amdahl's Law主要关注两个方面：

  • $\text{Fraction}_{\text{enhanced}}$
  • $\text{Speedup}_{\text{enhanced}}$

Speedup:

$$\text{Speedup}=\frac{\text{Performance for entire task}_{\text{Using enhancement}}}{\text{Performance for entire task}_{\text{Without enhancement}}}=\frac{\text{Total execution time}_{\text{Without enhancement}}}{\text{Total execution time}_{\text{Using enhancement}}}$$

以上是speedup的直接定义，若要考虑整体：

$$\text{Execution time}_{\text{new}}=\text{Execution time}_{\text{can not be enhanced}}+\text{Execution time}_{\text{enhanced}}$$

$$=\text{Execution time}_{\text{old}}\times[(1-\text{Fraction}_{\text{enhanced}})+\frac{\text{Fraction}_{\text{enhanced}}}{\text{Speedup}_{\text{enhanced}}}]$$

$$\text{Speedup}_{\text{overall}}=\frac{\text{Execution time}_{\text{old}}}{\text{Execution time}_{\text{new}}}=\frac{1}{(1-\text{Fraction}_{\text{enhanced}})+\frac{\text{Fraction}_{\text{enhanced}}}{\text{Speedup}_{\text{enhanced}}}}$$

我们发现：不管怎样提高$\text{Speedup}_{\text{enhanced}}$，$\frac{\text{Fraction}_{\text{enhanced}}}{\text{Speedup}_{\text{enhanced}}}$这一项始终大于0，因此可以得到重要推论：

$$\text{Speedup}_{\text{overall}}<\frac{1}{1-\text{Fraction}_{\text{enhanced}}}$$
